complex datapoints

7 Topics

Complex Datapoint Help...

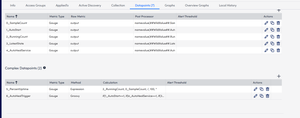

I'm by no means a guru when it comes to groovy or infix/rpn but I can't for the life of me create the Complex Datapoint I want. Here are the items collected by my DataSource. The Complex Datapoint I cant get working is the AutoHeal trigger. I've tried to use AI to help me build a query in the correct format, but none seem to work property and the documentation is pretty light on examples. Here is what I'm trying to do in a nutshell. If the 1_AutoStart value comes back as 1, and the 3_LatestState is not a 1, and the 2_RunningCount is less than 90% of 0_SampleCount, throw a 1, else throw a 0. Here is the current AI generated groovy code to try and accomplish this, but I get NoData with it. I've tried many different sample codes for both groofy and infix/rpn with no success. It doesn't like the "lt" in the GUI on many of the code samples, but accepts this one. if(1_AutoStart==1, if(4_AutoHealService==1, if(3_LatestState!=1, if(2_RunningCount/0_SampleCount<1, 1, 0), 0), 0), 0) Here is the GUI error when I try AI generated RPN code. Any thoughts or suggestions?
jonathanbarrow
14 days ago Place Product Discussions
31Views
0likes
1Comment
Can token values be evaluated in a complex datapoint?
I would like to construct a conditional datapoint which returns a value if the instance WILDVALUE is equal to a match, otherwise a different value is returned. Is it possible in expressions or groovy script complex datapoints to include tokens such as ##WILDVALUE##? These are some examples which are not currently working: eq(##WILDVALUE##,"C:\") or if(output[##WILDVALUE##]=="C:\") { return(1); } else { return(0); }
JaredM
3 years ago Place Product Discussions
246Views
5likes
5Comments
Complex Goovy Datapoint Conditional Statement
I would like to construct an evaluation in a complex datapoint for disk volume--my goals is to evaluate if a disk is both above 90% capacity and has less than 100GB space available. The current thresholds only based on percentages are less valuable with high capacity volumes. This is a WMI collection type, and I have been able to return the values of theses variables: output["FREESPACE"] output["CAPACITY"] However, as soon as I attempt to put conditions into a groovy statement I am not able to return a value. I want to confirm that performing conditional statements is possible, and if so if anyone has an example of a statement I could borrow as a template. I have tried this with no success so far: if (((output["CAPACITY"]-output["FREESPACE"])/output["CAPACITY"])*100,output["FREESPACE"]/1024/1024/1024) { return(1); } else { return(0); } even a simple operation doesn’t work, like this: testSpace = output["FREESPACE"] - output["CAPACITY"]; return (testSpace); Any help is appreciated.
JaredM
3 years ago Place Product Discussions
158Views
2likes
3Comments
How can Linux servers' queue length and depth be monitored?
I was asked to monitor queue length/depth on Linux servers, and I was not able to locate the relevant datasource that could monitor queue length/depth. Your assistance will be much appreciated.
Rakzskull
3 years ago Place Product Discussions
161Views
5likes
3Comments
Complex Groovy DataPoint access to Script/Batchscript output
I need access to Script/Batchscript output in a Complex Groovy DataPoint. This is a rather fundamental omission. It should be trivial to permit the output[“datapoint”] approach supported for other collection types. Make it so!
Solved
David_Bond
3 years ago Place Feature Requests
225Views
5likes
8Comments
Time after (Up)time
Time after (Up)time It’s one of the days that an unsung hero gets his chance to make a mark on the world.And who might this be? The floor function , also called the greatest integer function or integer value (Spanier and Oldham, 1987), gives the largest integer less than or equal to x. The floor function is not-normally implemented in the LM perspective – often brushed off, but it got its day when we had a user on chat who was looking on creating a dashboard which has server uptime in days instead of seconds. And so I tried devising a Big Number Widget that would include a virtual datapoint in it with the following calculation to display seconds into days: Fig1. Initial UptimeDays setup without the floor() function. UptimeSeconds/60/60/24 Where UptimeSeconds references a pre-calculated Complex Datapoint from the WinSystemUptime Datasource. Alas – this was not presenting days in a helpful manner. It was displaying days with a decimal point. Quoting from the chat : “that uptime display widget you created would be grand if it showed the days. it says 0,4 at the minute, does that meant 0.4 days?” And so we needed to figure on another method. A colleague of ours, a wizard from the magical realm of complex datapoints pointed out to us something powerful, that could display seconds, minutes and days even – And, with this, the second hand unwinds... By using the floor() function appended to the original expression – we could actually calculate: The day rounded to the nearest lowest integer. floor(UptimeSeconds/ 60/ 60 /24) For example if we had the result of 2.4 days from the UptimeSeconds/6000/60/24 calculation – it will present us the result as 2 – to the smallest following integer. Fig2. Complex Datapoints for Days, Hours and Minutes with the floor function And on the Hours Datapoint: floor((UptimeSeconds-(days*86400))/3600) Where 86400 represents the number of seconds in a day – 60 * 60 *24 = 86400. and 3600 represents the number of seconds in an hour - 60 * 60 =3600. This calculates the number of total hours (excluding the amount already converted and apportioned into the Days metric) , and again the floor function rounds the number hours to the smallest following integer. For example - 2.4 days - 0.4 is then carried over to the hours, which equates to 9.6 hours, and with the application of the floor function it will reflect 9 hours, with the balance of 0.6 hours to be calculated on the Minutes Datapoint. And lastly on the Minutes Datapoint: floor((UptimeSeconds-(days*86400)-(hours*3600))/60) Where 86400 represents the number of seconds in a day – 60 *60 *24 = 86400. and 3600 represents the number of seconds in an hour - 60 * 60 =3600. and 60 represents the number of seconds in a minute. This does the same again, number of total minutes excluding those previously factored in the days (*24) and and the hours (*60), rounded to the smallest following integer. And therefore, the floor() function has been very useful in this case to catch the Days, Hours and Minutes, have them precisely presented on the Big Number Widget - which the team could display on the dashboard to wait on -- Time after Time. Fig 3. Uptime Days,Hours and Minutes on the Big Number Widget References: https://www.logicmonitor.com/support/datasources/creating-managing-datasources/datapoint-expressions/ http://mathworld.wolfram.com/FloorFunction.html Credits to David Lee for pointing out on the powerful capabilities of the floor function.
Haniz
9 years ago Place Archive
17Views
0likes
0Comments
Simple Truth About Complex Datapoints
Logicmonitor can be used in ways that at first glance look too complicated to do without some magical programming powers. A chat that we had recently is summed up below. Quote One of our servers has an application that maxes out the CPU at 100% and brings down everything. This results in subsequent polls returning No Data or NaN (NaN means Not a Number). We have alerts on high cpu usage and we have alerts on No Data, but no combination of the two. If we see a No Data alert we have to look at the CPU Data from before NaN start and determine whether it was at 100% before failure. We would like an alert when the cpu is at 100% and the next poll being NaN (system being unresponsive due to the high CPU usage) At first glance this may look like something Logicmonitor cannot support natively except via a complex script based datasource. But this can be done with just a complex datapoint. Complex datapoints use mathematical formulas to generate the metric required from other regular datapoints in a datasource. if(un(counterA),0,counterA) This expression will return zero if value of counterA is NaN (not a number, such as absence of data, data in non-numerical format, or infinity). If value of counterA is anything other than NaN (some number), then that number will be returned. So if the percentage datapoint was called, cpupercent, we take this as the counter we are going to look at, create a complex datapoint, "deltacpupercent" with an expression of if(un(cpupercent),-1,cpupercent) Basically this means if the cpupercent is a number return the number otherwise return -1. If the cpu polls at 85 deltacpupercent would be 85. If the cpu polls at 100 deltacpupercent would be 100. If the cpu polls NaN deltacpupercent would be -1. So setting an alert on a delta change of >100 would alert when the system went unresponsive due to a 100% cpu condition, going from 100 to -1 in one poll. However, there's an even easier method in reality. From using the alert threshold wizard help page: absolute NaNDelta - works the same as absolute delta, but treats NaN values as 0 Setting this to alert on 100 would alert if the cpu went from 100 to NaN, but I prefer my complex solution as it gives you the opportunity to alert on a variety of things like keeping the current cpu usage alerts. --- Content contributed by David Lee, TSE UK team
James_Lee
9 years ago Place Archive
104Views
0likes
0Comments
