LinuxNewProcesses DataSource -- Auto discovery and key off of HOST-RESOURCES-MIB::hrSWRunName
Hello all! I just wanted to share my edits. I never could get LinuxNewProcesses to work for my needs.. but we really wanted it to also have auto discovery and automatically add a list of toolsets that we have deployed across the board. I did this LONG ago and my wildvalue was the PID…but that’s dangerous and I ended up creating thousands of entries in the LM database because my processes (thousands of them) were always changing. . . .this takes a different approach and keys off of the process name. #1 You just need to have a property defined with a comma separated list These names need to be from “HOST-RESOURCES-MIB::hrSWRunName” #2 My polling is every minute but don’t alert unless it’s been down for an hour…for my scenario, I do this on purpose because some of my applications run for about 5 minutes and then aren’t kicked off again for another 10…so adjust as needed :) The status is under a security review right now.. I’ll post the lmLocator if it makes it! Otherwise here’s the autodiscovery.. the collection script wont’ work and you’ll have to modify it import com.santaba.agent.groovyapi.snmp.Snmp; def OID_NAME = ".1.3.6.1.2.1.25.4.2.1.2"; def host = hostProps.get("system.hostname"); def services = hostProps.get("linux.services").split(','); Map<String, String> result = Snmp.walkAsMap(host, OID_NAME, null) result.forEach({ index,value->index = index; value = value; for (service in services) { if (value ==~ /${service}/) { def CMD_OID = ".1.3.6.1.2.1.25.4.2.1.4." + index; def service_cmd = Snmp.get(host, CMD_OID); def desc = index + " | " + service_cmd; out.println value + "##" + value + "##" + desc } } }) Script: Line 89: if ("${name}" == "${processPath}") {
implement better data serialization for active discovery results

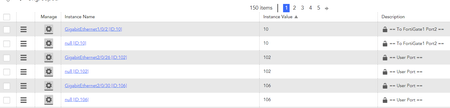

A few months ago after being told that SNMP_Network_Interfaces was the new preferred method for network interface data collection (despite it excluding SVI interfaces and using weird backward naming for the property to include all interfaces -- interface.filtering = true), we moved ahead with implementation. We found soon after that the module was corrupting interface descriptions, and a ticket raised with support resulted in the “too bad, sucks to be you” sort of response I often receive. The corruption involves stripping all hash signs from interface descriptions. This may sound harmless, but we have for years told our clients to prepend a # to an interface description to exclude it from alerting, which our automation detects and handles. The reason this happens is because the folks who came up with LM thought it would be a cool idea to use # as a field separator and this was embraced and extended by later developers. There was a solution we recommended (that was rejected) -- specify a transform string so the # becomes something else known we can match without breaking monitoring for thousands of interfaces. My request here is to work out a method to transition from the current field separator mechanism to an actual data serialization method like JSON.heads up - property corruption due to unknown results
I wanted to share this with everyone since it bit me recently. Sometimes LM will reset the value of properties like system.ips to just the single IP associated with the resource if something disrupts access to SNMP even briefly. The problem with this is it can impact other features, like Netflow binding. I am still battling this out with support but in the meantime I wrote a script to trigger AD for specified devices (had to use an undocumented endpoint) and I schedule that hourly to limit the damage in case it happens (normally AD is triggered once per day unless specific changes occur). My change logs show system.ips resetting fairly often, so the script is definitely helping. I explained to support that thwacking data due to an unknown result is a bug and no property should be changed due to that situation, but I imagine this bug will be hard to unwind. I also recommended a partial fix where AD could be triggered by a “host up” event to limit the damage, but that is a hack. Avoiding data corruption in the first place is the right fix. FWIW, the main loop of my script is below (it is in an ancient language, but the logic should be clear :)). DEVICE: for my $d (@{$devices}) { if ($DEVICES{lc $d->{displayName}}) { if ($ACTION eq "scheduleAutoDiscovery") { verbose 1, "scheduling AD for $d->{displayName}\n"; if (not $lmapi->post(path => "/device/devices/$d->{id}/scheduleAutoDiscovery")) { warn "ERROR: $ACTION failed\n"; } } else { die "ERROR: unsupported action: $ACTION\n"; } } }
