Monitoring Gateway SIP Trunk Status via SSH through Command line

Question

Hi,I am trying to monitor the status of the Gateway SIP trunk using the command "show sip-ua register status" via SSH. However, I am encountering issues while running a custom script provide by the support team. Initially, when I ran the script a few times, I received an error: "Unable to establish the SSH Connection". After some time, the error changed to "No Signature Method."I have verified the SSH connection from the collector server to the end device, and it works fine when I manually establish the SSH session. I also tested my own script , but it returned a similar error:&nbsp;"Error: Unable to establish SSH session/channel."I have attached the error snapshot and the script I am using for reference. Please guide me on how to monitor the SIP status via the command line using SSH.When running the command "show sip-ua register status", the output is either&nbsp;Yes (registered) or No (unregistered) from the device end. In LogicMonitor, the expected output should be:Yes = 0No = 1I tried to attach the Script but it will not support Txt Format, Sorry for the inconvenienceBelow is the script Provided by the support teamimport com.santaba.agent.groovyapi.expect.Expect;// Get the hostname and credentials from the device property tablehostname = hostProps.get("system.hostname");userid = hostProps.get("ssh.user");passwd = hostProps.get("ssh.pass");// Ensure required properties are not nullif (!hostname || !userid || !passwd) {&nbsp; &nbsp; throw new Exception("Missing required device properties: hostname, ssh.user, or ssh.pass.");}// Initiate an SSH connection to the host using the provided credentialsdef ssh_connection = Expect.open(hostname, userid, passwd);// Wait for the CLI prompt to confirm connectionssh_connection.expect("# "); // Adjust prompt based on your device// Send the `show sip-ua register status` commandssh_connection.send("show sip-ua register status
");// Wait for the response to completessh_connection.expect("#"); // Replace with your device's prompt// Print the output of the commandprintln "Command Output: " + ssh_connection.getLastOutput();// Logoutssh_connection.send("exit
");// Close the SSH connection handlessh_connection.expectClose();return 0;This is another script Created by Meimport com.santaba.agent.groovyapi.expect.Expect// Device credentials and detailsdef deviceIP = hostProps.get("system.ip") &nbsp; &nbsp; &nbsp;// IP address of the devicedef username = hostProps.get("ssh.user") &nbsp; &nbsp; &nbsp; // SSH username from LogicMonitordef password = hostProps.get("ssh.pass") &nbsp; &nbsp; &nbsp; // SSH password from LogicMonitor// Command to executedef command = "show sip-ua register status"// Initialize resultdef resultCode = 1 &nbsp;// Default to 1 (Unregistered)// Start SSH sessiontry {&nbsp; &nbsp; def session = Expect.open(deviceIP, username, password)&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; // Send the command&nbsp; &nbsp; session.send(command + "
")&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; // Wait for the output&nbsp; &nbsp; def output = session.expect(10, ".*") &nbsp;// Adjust timeout (10 seconds) as needed&nbsp; &nbsp; println("Command output: ${output}")&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; // Check the output for 'Yes' or 'No'&nbsp; &nbsp; if (output.toLowerCase().contains("yes")) {&nbsp; &nbsp; &nbsp; &nbsp; resultCode = 0 &nbsp;// Registered&nbsp; &nbsp; } else if (output.toLowerCase().contains("no")) {&nbsp; &nbsp; &nbsp; &nbsp; resultCode = 1 &nbsp;// Unregistered&nbsp; &nbsp; } else {&nbsp; &nbsp; &nbsp; &nbsp; throw new Exception("Unexpected output: ${output}")&nbsp; &nbsp; }&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; // Close the session&nbsp; &nbsp; session.close()} catch (Exception e) {&nbsp; &nbsp; println("Error: ${e.message}")&nbsp; &nbsp; // Optionally log additional details for debugging}// Print the result for LogicMonitorprintln(resultCode)return resultCode

mike_moniz · Answer

What kinda device are you attempting to SSH into?
There was an older forum post at https://community.logicmonitor.com/discussions/product-discussions/lm-expect-packages-and-ed25519/14285 that mentions issues with Expect and Fortigate. That LM's Expect might not support some of the newer SSH encryption systems.

shack · Answer

Try this one for Active Discovery.&nbsp; My applies to is hasCategory("CiscoVoiceDialControl")&nbsp; It was created for telnet but you should be able to tweak it.&nbsp; It is multi instance.// Import the LogicMonitor expect helper class
import com.santaba.agent.groovyapi.expect.Expect

// Get the hostname and credentials from the device property table
def hostname = hostProps.get("system.hostname")
def userid = hostProps.get("ssh.user")
def passwd = hostProps.get("ssh.pass")
def port = 23  // Default Telnet port
def timeout = 5000  // Timeout in milliseconds

// Open a Telnet connection
def telnet_connection = Expect.open(hostname, port, timeout)
telnet_connection.expect("Username:")
telnet_connection.send("${userid}
")
telnet_connection.expect("Password:")
telnet_connection.send("${passwd}
")
telnet_connection.expect("#")

// Disable pagination and set terminal width
telnet_connection.send("terminal width 0
")
telnet_connection.expect("#")
telnet_connection.send("terminal pager 0
")
telnet_connection.expect("#")

// Send command to display the SIP UA register status
telnet_connection.send("show sip-ua register status
")
telnet_connection.expect("#")

// Collect the command output
def config = telnet_connection.before()

// Close the Telnet connection
telnet_connection.send("exit
")
telnet_connection.expectClose()

// Print the raw output for debugging
//println config

// Initialize a list to hold parsed entries
def entries = []

// Use regex to match each line of data
def matcher = config =~ /(\d+)\s+(\d+)\s+(\d+)\s+(\w+)\s+(\w+)\s+(\S+)/

while (matcher.find()) {
    def line = matcher.group(1)
    def peer = matcher.group(2)
    def expires = matcher.group(3).toInteger()
    def reg = matcher.group(4)
    def survival = matcher.group(5)
    def p_associ_uri = matcher.group(6)

// Map Reg field: 0 for "yes" and 1 for "no"
    def regStatus = (reg == "yes") ? 0 : 1

// Create an entry map with the mapped Reg value
    def entry = [
        'Line': line,
        'Peer': peer,
        'Expires': expires,
        'Reg': regStatus,  // Mapped value
        'Survival': survival,
        'P-Associ-URI': p_associ_uri
    ]

    // Add entry to entries list
    entries &lt;&lt; entry
}

// Output the parsed entries for LogicMonitor to pick up as individual datapoints
entries.each { entry -&gt;
    // println "Line: ${entry['Line']}, Peer: ${entry['Peer']}, Expires: ${entry['Expires']}, Reg: ${entry['Reg']}, Survival: ${entry['Survival']}, P-Associ-URI: ${entry['P-Associ-URI']}"
    println "${entry.Line}##${entry.Line}"
}

// Return a success code
return 0Below is for data collection.// Import the LogicMonitor expect helper class
import com.santaba.agent.groovyapi.expect.Expect

// Get the hostname and credentials from the device property table
def hostname = hostProps.get("system.hostname")
def userid = hostProps.get("ssh.user")
def passwd = hostProps.get("ssh.pass")
def port = 23  // Default Telnet port
def timeout = 5000  // Timeout in milliseconds

// Open a Telnet connection
def telnet_connection = Expect.open(hostname, port, timeout)
telnet_connection.expect("Username:")
telnet_connection.send("${userid}
")
telnet_connection.expect("Password:")
telnet_connection.send("${passwd}
")
telnet_connection.expect("#")

// Disable pagination and set terminal width
telnet_connection.send("terminal width 0
")
telnet_connection.expect("#")
telnet_connection.send("terminal pager 0
")
telnet_connection.expect("#")

// Send command to display the SIP UA register status
telnet_connection.send("show sip-ua register status
")
telnet_connection.expect("#")

// Collect the command output
def config = telnet_connection.before()

// Close the Telnet connection
telnet_connection.send("exit
")
telnet_connection.expectClose()

// Print the raw output for debugging
//println config

// Initialize a list to hold parsed entries
def entries = []

// Use regex to match each line of data
def matcher = config =~ /(\d+)\s+(\d+)\s+(\d+)\s+(\w+)\s+(\w+)\s+(\S+)/

while (matcher.find()) {
    def line = matcher.group(1)
    def peer = matcher.group(2)
    def expires = matcher.group(3).toInteger()
    def reg = matcher.group(4)
    def survival = matcher.group(5)
    def p_associ_uri = matcher.group(6)

// Map Reg field: 0 for "yes" and 1 for "no"
    def regStatus = (reg == "yes") ? 0 : 1

// Create an entry map with the mapped Reg value
    def entry = [
        'Line': line,
        'Peer': peer,
        'Expires': expires,
        'Reg': regStatus,  // Mapped value
        'Survival': survival,
        'P-Associ-URI': p_associ_uri
    ]

    // Add entry to entries list
    entries &lt;&lt; entry
}

// Output the parsed entries for LogicMonitor to pick up as individual datapoints
entries.each { entry -&gt;
    println "${entry.Line}.Reg:${entry.Reg}"
}

// Return a success code

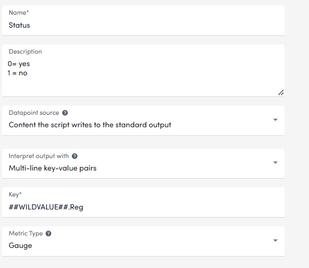

return 0I have one datapoint named Status and it looks like this.&nbsp;

sharath · Answer

Model - ISR4431/K9 Routerfirmware_version &nbsp; &nbsp;17.6.1hardware_version &nbsp; &nbsp;V07Vendor - Cisco&nbsp;

sharath · Answer

I have attached the snapshot for reference , please let me know any other info

sharath · Answer

Mike Moniz, Can you suggest how to achieve this?
