Average and Max CPU and Memory utilization

These are all windows servers

Hi Vivek,

Just making sure, would you be looking for something like this?:

We picked the CPU and Memory Datasources for our Cisco devices and for this example I set it to the last 60 Days.

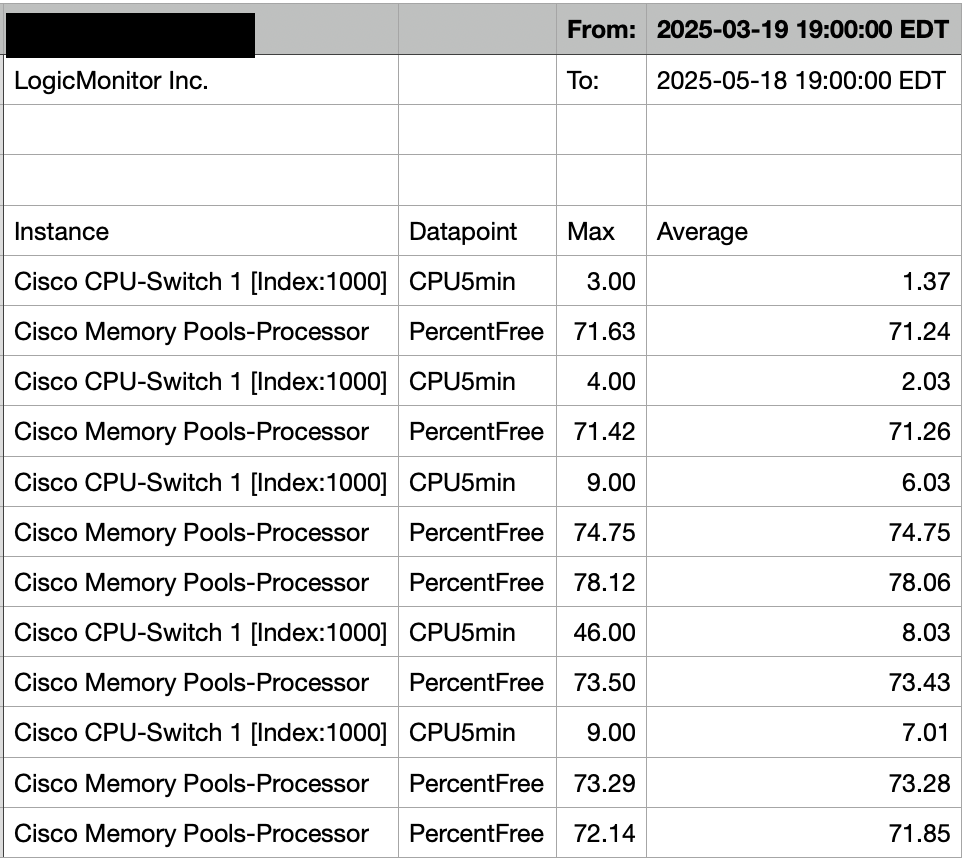

It printed out the Average and Max CPU/Memory for each device in the group we specified.

Hi dmb269,

Yes, somewhat like this. I am not aware of the Datapoint ment what do they mean?

 How did you pull this data - any report?

Vivek,

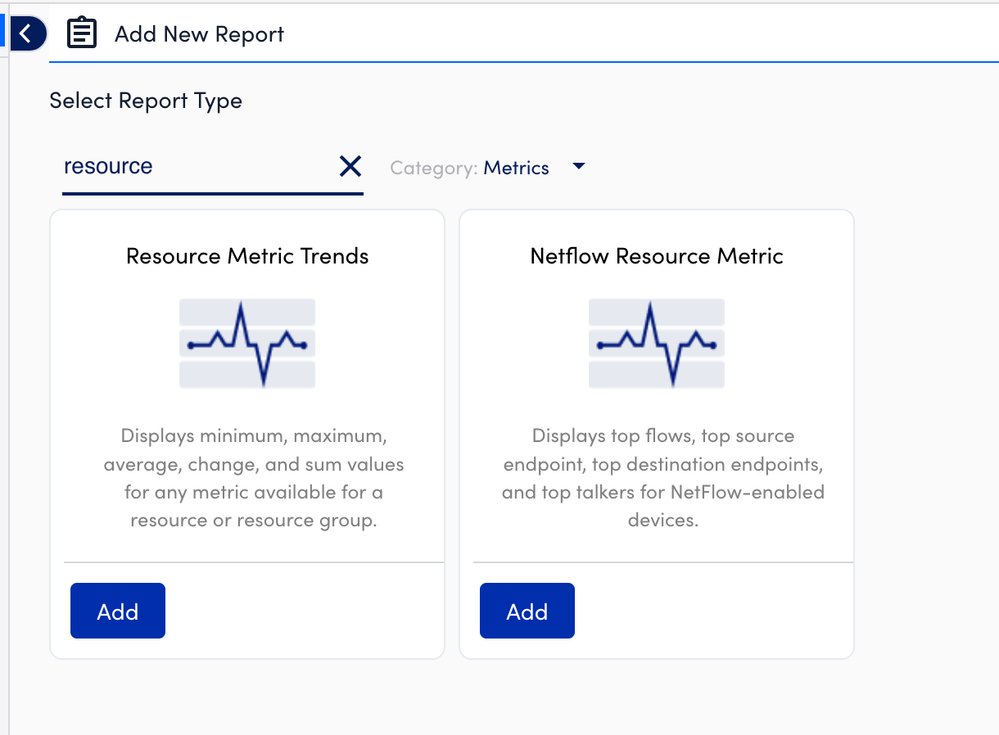

In reports I utilize the "Resource Metric Trends" report to get data like this.

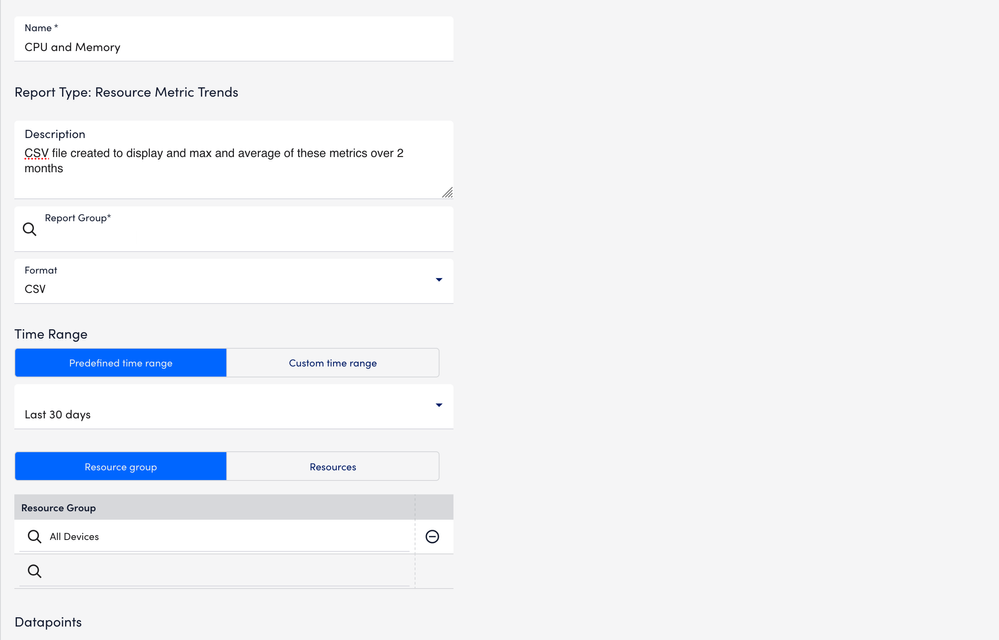

From here, you'll want to fill in the specifics on what you want to pull from your windows devices. You can name it whatever you want along with the description, make sure to have the format be 'CSV' and time range to your preferred period. Resource group would just be wherever your windows devices are located and the most important part would be the datapoints.

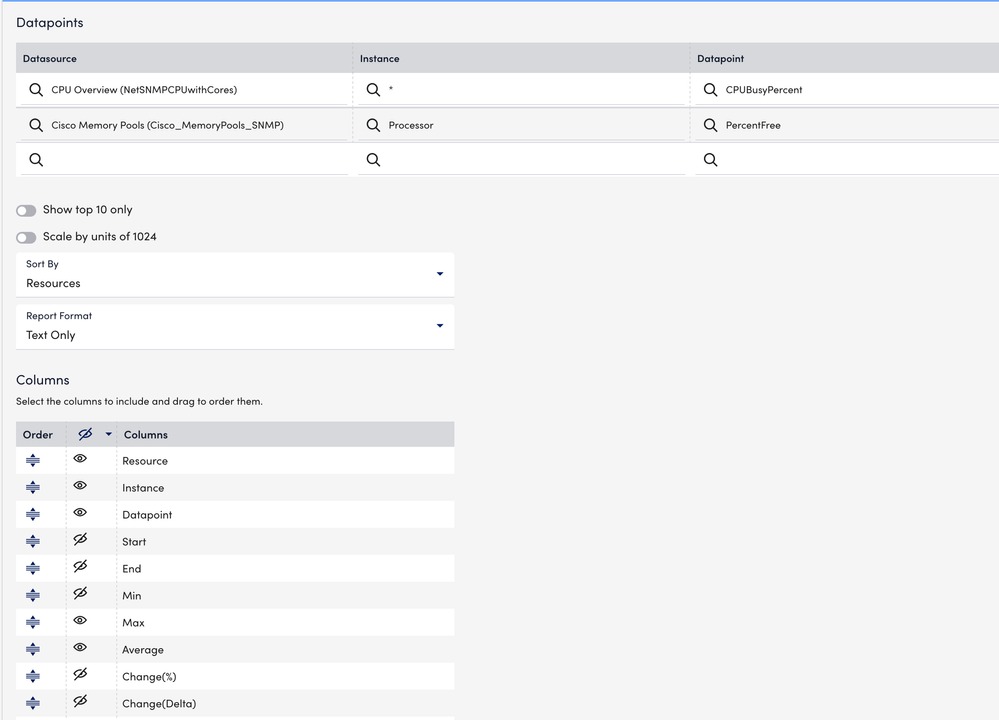

Since you are using Windows you will most likely be using the "MICROSOFT_WINDOWS_CPU" datasource along with the "WinMemory" datasource. From there you can then pick what you want to monitor. I don't have any experience with Windows devices in LM so maybe support would be able to help, but from here you should be able to choose what you would like to capture and if you want it setup on a schedule.

- Devon
