Forum Discussion

Cole_McDonald's avatar
Cole_McDonald
Icon for Professor rankProfessor
27 days ago

Ubiquiti Unifi 'Source Errors

We're having some difficulties getting the Unifi 'Sources to properly complete their Active Discovery Scripts, leading to building thread counts in the collector, leading to collector service restarts...

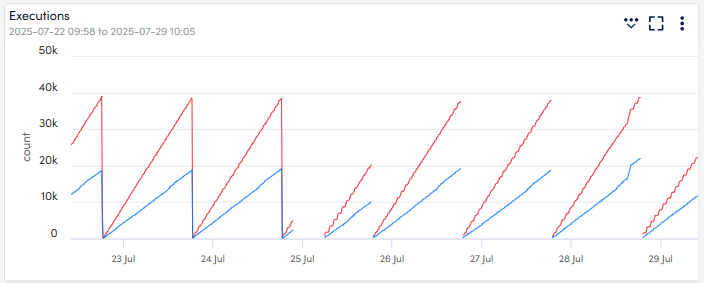

(ScriptADTasks - 7 days - Red = Failures):

I've been chasing the issues (some is the 'Source's appliesTo not properly targeting devices based on the gathered SNMP initial discovery properties) and have not quite found the smoking gun as the error I'm being given doesn't directly point to the issue.

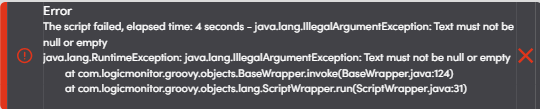

Running AD Test from the DS "Ubiquiti_UniFi_Security_Gateways" against a UXG Pro device gives me this error: "Text must not be null or empty"

It doesn't identify which text is needed.  The line numbers mentioned don't seem to relate directly to the DS AD code's line numbers.

6 Replies

  • Kyle_Hartigan's avatar
    Kyle_Hartigan
    26 days ago

    I had similar issues onboarding a UniFi controller a while ago. This controller was managing over a thousand devices across a couple of hundred sites.

    Turned out that the MongoDB backend of the controller was too slow to respond due to the sheer amount of data that was being queried by the LM collector (this was the MongoDB instance that was bundled together with the Unifi installer, all on the same machine). This led to random gaps and massive delays in autodiscovery (and I had the same, if not similar errors when testing the datasources).

    The way I found this was by using the CLI to make the same call, and it would just time out due to a lack of response from the controller. I repeated the process while monitoring the processes and logs directly on the controller, on noticed that MongoDB was struggling to respond with the request dataset (due to size).

    To fix this, I had to redeploy the Unifi controller to a new server with a separate server running the MongoDB database. I did some research into MongoDB deployments and made sure I followed some documented best practices around storage and filesystem types. Once the servers were deployed, I migrated the collector configuration over just using the standard backup and restore process that Unifi provide.

    After that ordeal, the controller's overall performance significantly improved, and I no longer had any issues with the LM Unifi Datasources.

    I recommend that you start looking at the controller's mongo instance to see if there are issues there. Not saying you're having the same issue, but I thought I would share my experience.

    This issue took me a long time to solve, and I ended up writing up a deployment guide in my KB if you're interested.

    • Cole_McDonald's avatar
      Cole_McDonald
      Icon for Professor rankProfessor
      26 days ago

      I am interested in seeing that KB guide if you're willing to share.  Great rundown of the issue.  Perhaps reducing the DS sample frequencies may help alleviate some of the issue for now.  We're an MSP, so we're monitoring and taking action on alerts.  We'll be able to advise the client to change any configurations/architecture, but not make any direct changes they don't approve.

      I'm going to keep fiddling with the DataSources and their AppliesTo to see if I can reduce the amount of traffic... I've already done so by changing the AP one:

      from:

      hasCategory("Ubiquiti_Unifi") || (unifi.user && unifi.pass)

      to:

      hasCategory("Ubiquiti_Unifi") || (unifi.user && unifi.pass)
      && hasCategory("UbiquitiUnifiAP")

      There are PropertySources that are tagging devices, but those properties aren't being used in the appliesTo to reduce the amount of Active Discovery queries against devices that wouldn't respond to them correctly anyway, causing timeouts rather than returns.

      • Cole_McDonald's avatar
        Cole_McDonald
        Icon for Professor rankProfessor
        26 days ago

        Found a good reference for OIDs to help differentiate between device types... the AP PropertySource is already using this to do so: mibs.observium.org/mib/UBNT-MIB/

        AP is looking for "1.3.6.1.4.1.41112.1.6.3.3.0"

        I may clone the AP PropertySource and add a switch/case statement to find/select other device types to tag so they can be used in the appliesTo for the other PropertySources.

  • Cole_McDonald's avatar
    Cole_McDonald
    Icon for Professor rankProfessor
    26 days ago

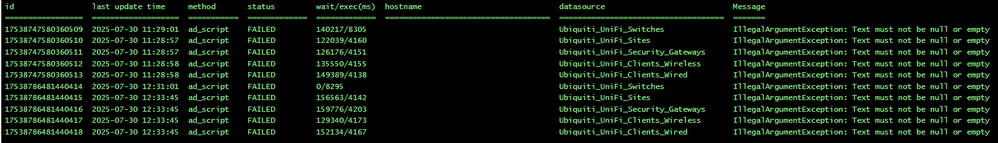

    Here's the !ADLIST from the collector showing the full list of DS and the response from them:

    No indication what text is null or empty for me to troubleshoot.  Setting the debug flag to true doesn't produce any useful results in the code.
