Script Walkthrough - Automating Collector Installs
Let’s walk through the attached Python script that utilizes the LogicMonitor API. This script will automate a collector install for Linux. It will Create the Collector Object, Download the collector installer, give the collector executable permissions, and finally install and register the collector.
Full documentation including examples for the LogicMonitor REST API can be fond in the below link
https://www.logicmonitor.com/support/rest-api-developers-guide/
We have examples for most of the functions in the API on our support site. Using these examples, it’s possible to copy\paste only making minor changes to create a script for your needs. This example will explain how to do this as well as combine multiple example scripts together.
Declaring the environment and classes. This can be mostly copied\pasted from the example templates.
<span class="pln">#!/bin/env python
import requests
import json
import hashlib
import base64
import time
import hmac
import commands</span>
This is the authentication setup. It’s easier than it looks.

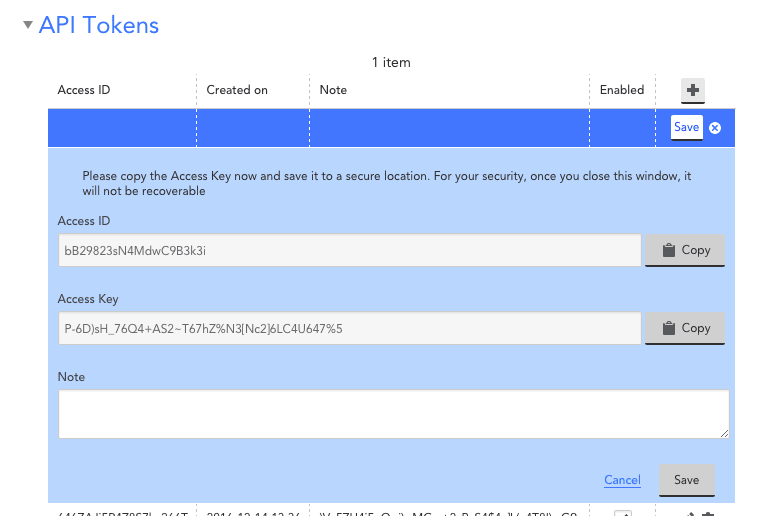

To get the AccessID and AccessKey, open the console and create a new or use an existing user. Under the API Tokens, press the + button to generate the tokens.
The company name is the portal ie, mine is ‘lmjeffwoeber.logicmonitor.com’ so my company is 'lmjeffwoeber'
Now that we have our authentication setup we need to gather the data to put into our API call URL and create the collector object on the portal. This is from the example on the Add a Collector page
https://www.logicmonitor.com/support/rest-api-developers-guide/collectors/add-a-collector/
Feel free to add or remove properties to the “data=’{" string to fit your environment, a complete list of properties can be found in the above link.
<span class="pln">#Create Collector Object
#Request Info
httpVerb ='POST'
resourcePath = '/setting/collectors'
queryParams = ''
data = '{"description":"TestCollector1","backupAgentId":39}'
#Construct URL
url = 'https://'+ Company +'.logicmonitor.com/santaba/rest' + resourcePath +queryParams</span>
Next construct the URL, this can be mostly copied\pasted as it does not really change.
<span class="pln">#Get current time in milliseconds
epoch = str(int(time.time() * 1000))
#Concatenate Request details
requestVars = httpVerb + epoch + data + resourcePath
#Construct signature
signature = base64.b64encode(hmac.new(AccessKey,msg=requestVars,digestmod=hashlib.sha256).hexdigest())
#Construct headers
auth = 'LMv1 ' + AccessId + ':' + signature + ':' + epoch
headers = {'Content-Type':'application/json','Authorization':auth}</span>This part executes the URL and the API will create the Collector Object
Next is the tricky part. We need the collector ID for the rest of the script so we have to extract that from the returned JSON file and add it to a local variable for later use. LogicMonitor uses the JSON format as payloads. You can read about parsing JSON files from http://docs.python-guide.org/en/latest/scenarios/json/ Lets use the script to walk through the parsing process.
This is JSON snippet is what the Add Collector function will return.
<span class="pln">Response Body: {
"status" : 200,
"errmsg" : "OK",
"data" : {
"id" : 84,
"createdOn" : 1486761412,
"updatedOn" : 1486761412,
"upTime" : 0,
"watchdogUpdatedOn" : 1486761412,
"status" : 0,</span>
The collectorID:# or '"id" : 84' is needed for the rest of the script. The jsonResponse = json.loads(response.content) is used to grab the JSON response from the above response function and define it to the local variable jsonResponse. This will give the script access to the returned JSON data. The JSON dictionaries needs to be specified to pull specific data, to accomplish this take a look at the "{", entries in the JSON snippet. These are the dictionaries. To simplify this, we need to place them in [ ] to pull the data out of the JSON file. In this case their is only the main body dictionary which does not need to be references and a "data" dictionary. To pull the value for the ID dictionary use the syntax ['data']['id'] as seen in the example below.
<span class="pln">#Parse response
jsonResponse = json.loads(response.content)
#The CollectorID is needed to download the installer
deviceID=(jsonResponse['data']['id'])</span>Now the ID number is assigned to the variable 'deviceID'. We are using the Collector ID for URLs so we need to convert this from a int to a string. Easy enough using the str() function
Now the string version of the collector ID is in the variable deviceIDstr and we can use that in the API URLs.
The print function provides nice feedback for the end user so they can track what is happening.
The first part is done and we have created a Collector Object on the portal and stored the Collector ID locally in a variable. Time to download the collector installer. The template for this section can be found on our support site
Declaring the environment and classes and setting up authentication can be skipped as it’s already done.
Lets build the URL according to the example script.
Next add the collector ID to the URL this can do this by adding in the deviceIDstr var directly in the resource path.
Any property found on the above link to the REST API Collector download can be set on the queryParams variable. The example is using collectorsize= and setting it to nano, as this is just a lab.
Just in the case as the previous section, it's possible to copy\paste the construction of the URL as it’s mostly the same as the example.
<span class="pln">#Construct URL
url = 'https://'+ Company +'.logicmonitor.com/santaba/rest' + resourcePath +queryParams
#Get current time in milliseconds
epoch = str(int(time.time() * 1000))
#Concatenate Request details
requestVars = httpVerb + epoch + data + resourcePath
#Construct signature
signature = base64.b64encode(hmac.new(AccessKey,msg=requestVars,digestmod=hashlib.sha256).hexdigest())
#Construct headers
auth = 'LMv1 ' + AccessId + ':' + signature + ':' + epoch
headers = {'Content-Type':'application/json','Authorization':auth}
#Make request
response = requests.get(url, data=data, headers=headers)</span>
This part downloads the collector as “LogicMonitorSetup.bin” to the current working directory.
<span class="pln">#Print status and write body of response to a file
print 'Response Status:',response.status_code
file_ = open('LogicMonitorSetup.bin', 'w')
file_.write(response.content)
file_.close()</span>
The download is now complete, now we need to give the LogicMonitorSetup.bin file execute permissions and run it. I used the commands function feel free to use any preferred alternative, we are just running shell commands at this point.
End user feedback
Run the Setup.bin file with the silent option -y A full list of install options can be seen by running ./LogicMonitorSetup.bin -h
And that's it! A new collector should be registered on the portal.
-Jeff
Below is a copy of the example script used for this post.
<span class="pln">#!/bin/env python
import requests
import json
import hashlib
import base64
import time
import hmac
import commands
#Account Info
AccessId ='j53939s54CP3Z9SUp6S5'
AccessKey ='k[t2nP6-Srie[=M9Ju%-H8riy8Sww3Mp9j%kse5X'
Company = 'lmjeffwoeber'
#Create Collector Object
#Request Info
httpVerb ='POST'
resourcePath = '/setting/collectors'
queryParams = ''
data = '{"description":"TestCollector1"}'
#Construct URL
url = 'https://'+ Company +'.logicmonitor.com/santaba/rest' + resourcePath +queryParams
#Get current time in milliseconds
epoch = str(int(time.time() * 1000))
#Concatenate Request details
requestVars = httpVerb + epoch + data + resourcePath
#Construct signature
signature = base64.b64encode(hmac.new(AccessKey,msg=requestVars,digestmod=hashlib.sha256).hexdigest())
#Construct headers
auth = 'LMv1 ' + AccessId + ':' + signature + ':' + epoch
headers = {'Content-Type':'application/json','Authorization':auth}
#Make request
response = requests.post(url, data=data, headers=headers)
#Parse response
jsonResponse = json.loads(response.content)
#The CollectorID is needed to download the installer
deviceID=(jsonResponse['data']['id'])
#Converting the int to a str
deviceIDstr=str(deviceID)
#print(deviceIDstr)
print"Create Collector Object ID:"+(deviceIDstr)+" success!"
#Download Collector Installer
#Request Info
httpVerb ='GET'
#Adding the CollectorID to the URL
resourcePath = '/setting/collectors/'+deviceIDstr+'/installers/Linux64'
#Specify size [nano|small|medium|large]
queryParams = '?collectorSize=nano'
data = ''
#Construct URL
url = 'https://'+ Company +'.logicmonitor.com/santaba/rest' + resourcePath +queryParams
#Get current time in milliseconds
epoch = str(int(time.time() * 1000))
#Concatenate Request details
requestVars = httpVerb + epoch + data + resourcePath
#Construct signature
signature = base64.b64encode(hmac.new(AccessKey,msg=requestVars,digestmod=hashlib.sha256).hexdigest())
#Construct headers
auth = 'LMv1 ' + AccessId + ':' + signature + ':' + epoch
headers = {'Content-Type':'application/json','Authorization':auth}
#Make request
response = requests.get(url, data=data, headers=headers)
#Print status and write body of response to a file
Print"Downloading Collector Installer"
print 'Response Status:',response.status_code
file_ = open('LogicMonitorSetup.bin', 'w')
file_.write(response.content)
file_.close()
#Give execute perm to collector install and install with the silent option
commands.getstatusoutput('chmod +x LogicMonitorSetup.bin')
print"adding execute permissions to the collector download"
print"Starting collector install"
#-m bypasses mem check as my lab only has 1 gig of ram. Remove in production
commands.getstatusoutput('./LogicMonitorSetup.bin -y -m')
print"Script Complete"</span>
