cisco wlc 9800 monitoring

Hello community,

any experiences with monitoring of 9800 and its APs?
I am using some other tool and considering LM since I used it in past.

Are the modules for cisco wireless any good?
I am interested in monitoring mesh link and AP radio interface metrics.

9800 is not responding to many queries from cisco MIB files, I assume they just repacked old MIB files and now there is no difference between 9800 and old AireOS....

Let me know if LM overcomes this.

Cheers,
M

mtnfsr

Posted 2 years ago·Last reply 2 years ago

5 comments

mtnfsr

OP2 years ago

thanks Stuart. I see those are all working OIDs from mib file.
I would like to see info from "show interfaces dot11Radio 1" on AP like bytes received/transmitted etc.

Are you aware of compatibility with cisco telemetry broker, that is another way of sending stats from WLC to the external database and then representing it. Can LM do it?

LM User

·2 years ago

You're testing the limits of my knowledge of a 9800. Is "show interfaces dot11Radio 1" a command you would run on the AP or on the 9800?

If it doens't exist OOTB, that kind of thing would be easy to grab using an SSH based datasource.

LM couldn't do telemetry broker without a 3rd party external database. If you can get the data into a 3rd part db, then you could use a JDBC based DS in LM to query the data from the database.

LM User

·2 years ago

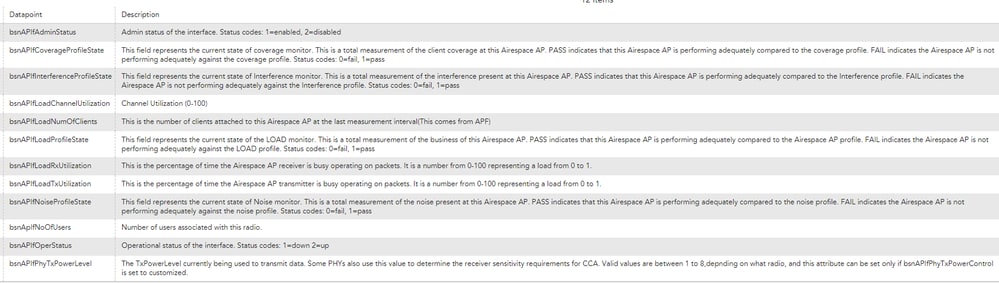

Stats per radio:

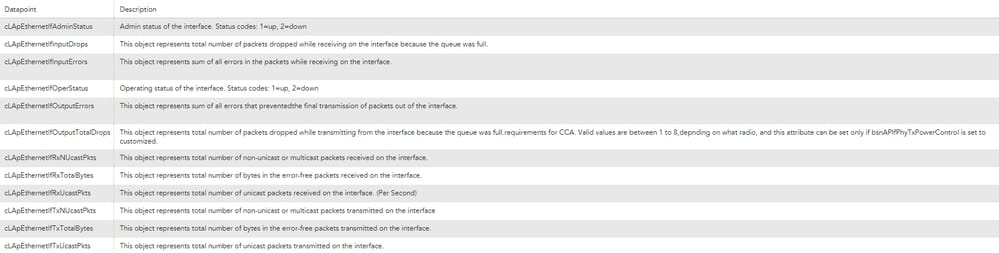

Stats per interface:

I actually don't know if we monitor a mesh link. Not my area of expertise.
